CLIPSAL SWITCHES & SOCKETS, SWITCHES & SOCKETS

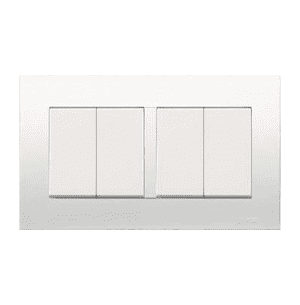

Clipsal 4 Gang 1 Way Switch Vivace Series
₨ 1,200
Compare| range | Vivace | |
| product or component type | Switch | |
| device short name | KB34 | |
| device presentation | Complete mechanism |
| Complementary | ||
| switch function | 1-way | |
| actuator | Rocker | |
| number of gangs | 4 gangs | |
| colour tint | White | |
| material | Polycarbonate: grid plate Polycarbonate: surround Nylon: base |
|
| projecting depth | 8 mm | |
| device mounting | Flush | |
| mounting support | Wall mounted | |
| fixing mode | By screw M3.5 | |
| fixing center | 120.6 mm | |
| embedding depth | 35 mm | |
| rated current | 16 AX at 250 V AC, fluorescent | |
| [Ue] rated operational voltage | 250 V AC | |
| network frequency | 50 Hz | |
| contacts material | Brass and phosphor bronze | |
| connections – terminals | pillar terminal | |
| terminal identifier | L1 COM L2 |
|
| tightening torque | 0.4 N.m | |
| clamping connection capacity | <= 2.5 mm² | |
| width | 146 mm | |
| height | 86 mm | |
| Environment | ||
| standards | SS 227 MS IEC 60669-1 IEC 60669-1 |
|
| ambient air temperature for operation | -5…40 °C | |
| relative humidity | 0…95 % | |
| environmental characteristic | Indoor use | |
